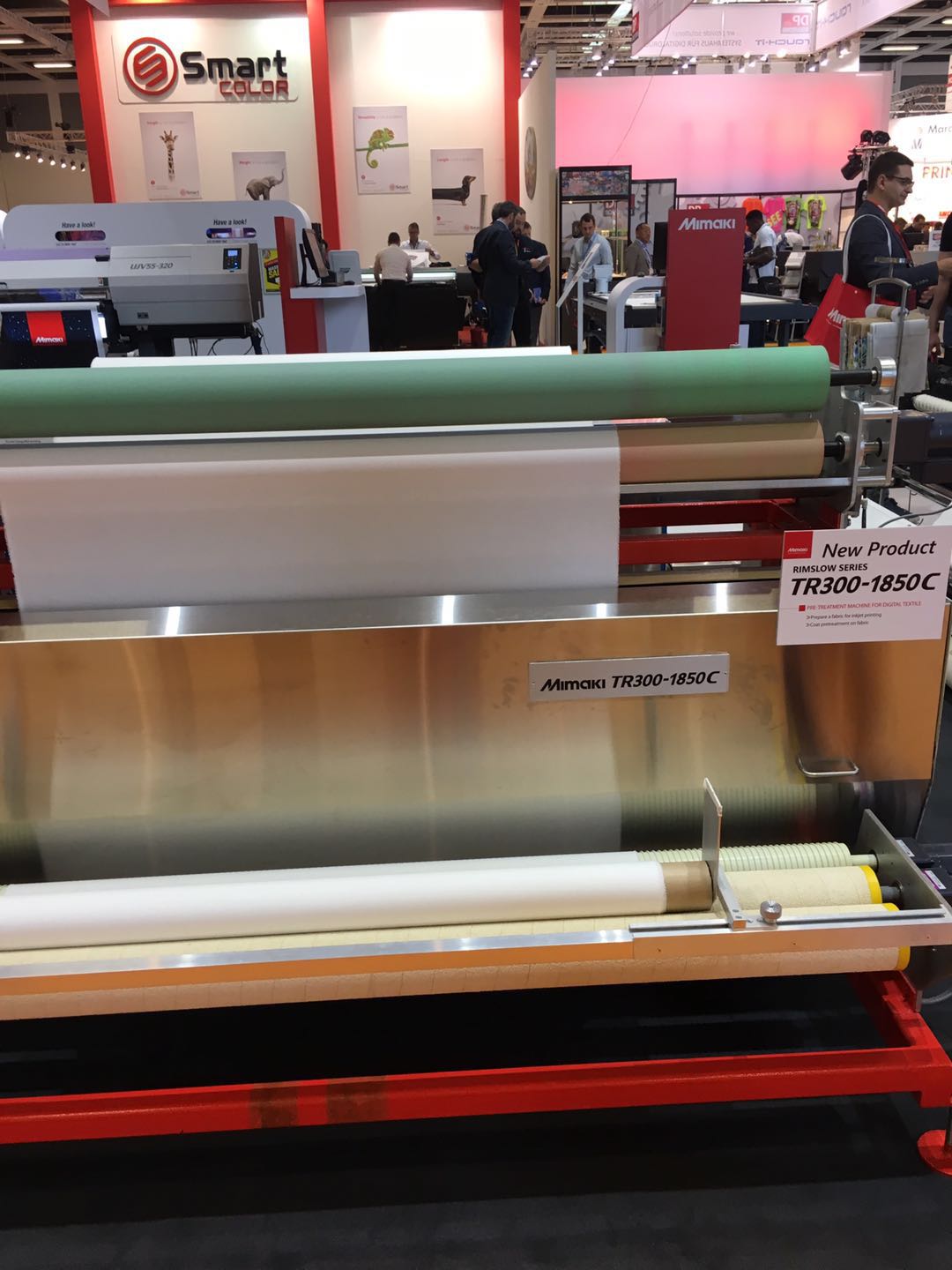

| Item | TR300-1850C |
|---|---|
| Maximum media width | 1,850 mm [72"] |
| Maximum media diameter | 300 mm [11.8"] |
| Maximum settable temperature (drying) |
100 degC [212 degF] |
| Maximum processing speed | 75 lm (Linear meter)/h |
| Tray capacity for agent application | 25 L |
| Tank capacity (Pre-treatment agent) | 50 L |
| Heater power | Electricity |
| Power supply | 3-phase 4-wire AC400V±5%, 50/60Hz±1Hz 32A or less |
| Power consumption | 18 kW |
| Water consumption | N/A (Only required for cleaning) |
| Compressed air | 200 L/min. at 6 bars |
| Dimensions (WxDxH) | 2,600 x 1,700 x 1,100 mm [102.4 x 66.9 x 43.3"] |
| Weight | 380 kg [838 lb] |

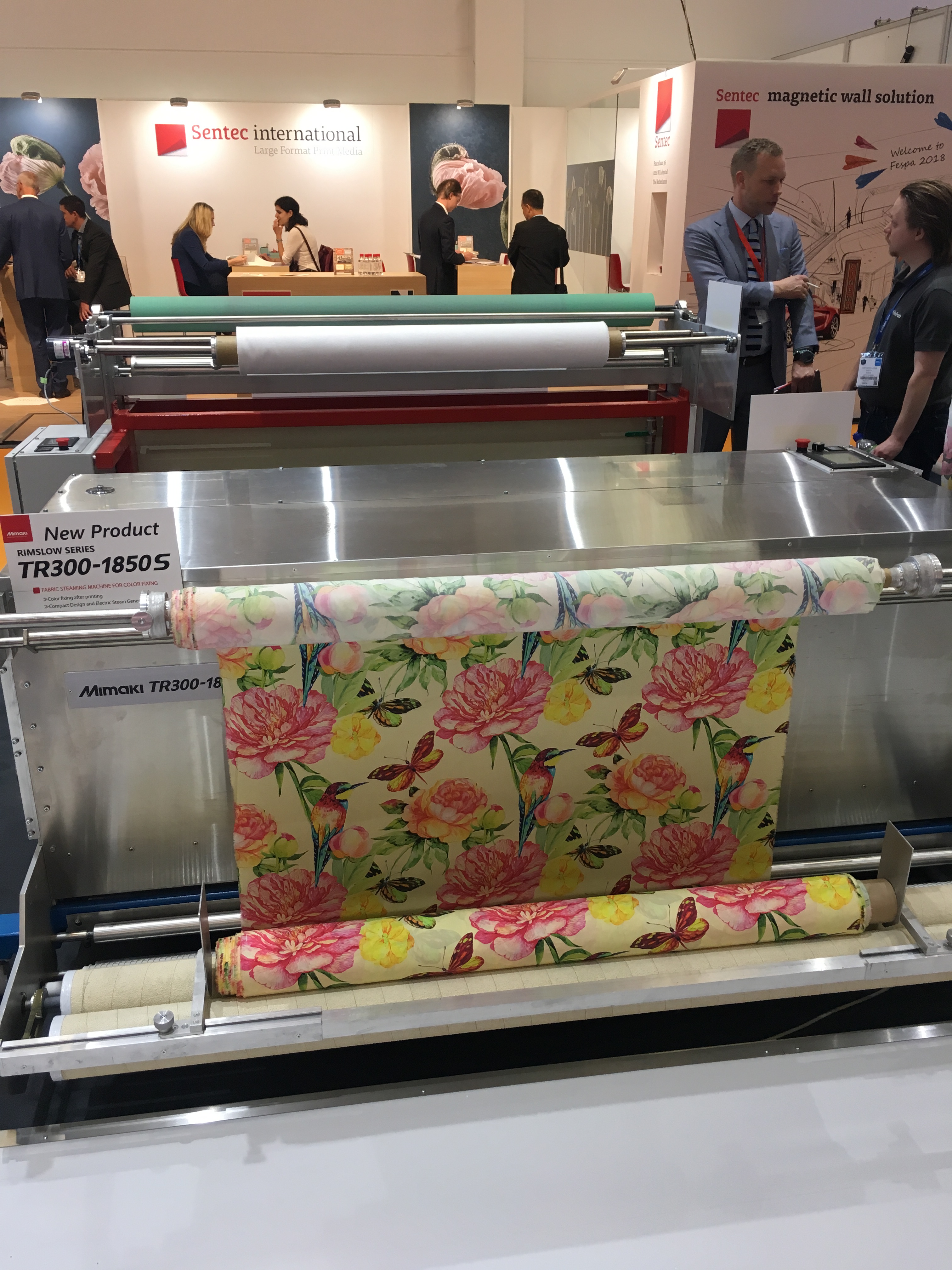

| Item | TR300-1850S |
|---|---|
| Maximum media width | 1,850 mm [72"] |
| Maximum media diameter | 300 mm [11.8"] |
| Maximum settable temperature (steaming) |
Saturated steam: 102 degC [215.6 degF] Overheat steam: 180 degC [356 dgF] |
| Maximum processing speed | 55 lm (Linear meter)/h |
| Fabric length | 6 m |
| Tank capacity (Water) | 25 L |
| Heater power | Electricity |
| Power supply | 3-phase 4-wire AC400V±5%, 50/60Hz±1Hz 32A or less |
| Power consumption | 12 kW |
| Dimensions (WxDxH) | 2,500 x 1,600 x 1,300 mm [98.4 x 63.0 x 51.2"] |
| Weight | 480 kg [1,058 lb] |

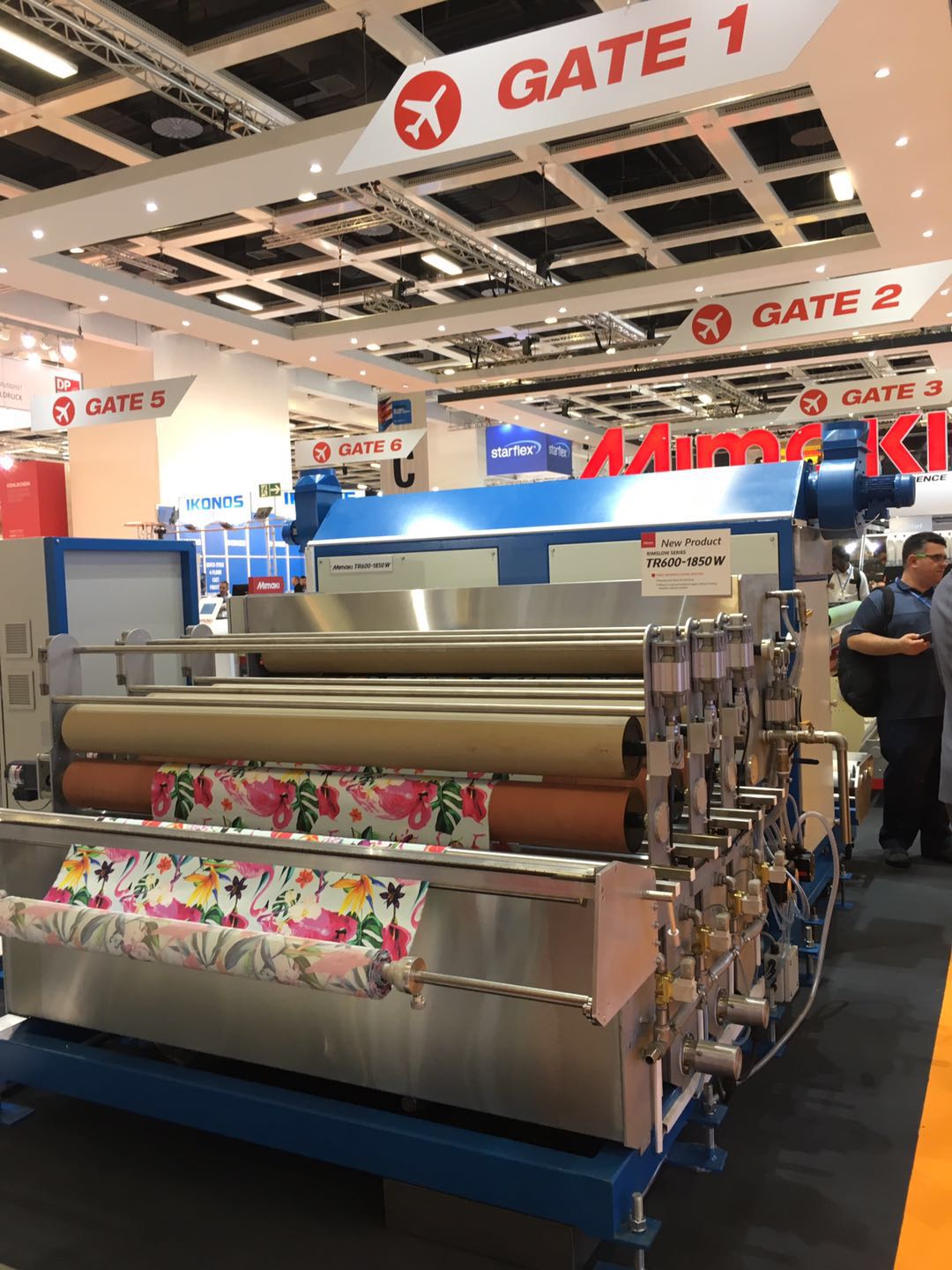

| Item | TR600-1850W |
|---|---|
| Maximum media width | 1,850 mm [72"] |
| Maximum media diameter | 300 mm [11.8"] |
| Maximum settable temperature (drying) |
180 degC [356 dgF] |
| Maximum processing speed | 130 lm (Linear meter)/h |
| Tray capacity for agent | 24 L |
| Tank capacity (Washing) | 340 L x 4 |
| Heater power | Electricity |
| Power supply | 3-phase 4-wire AC400V±5%, 50/60Hz±1Hz 100A or less |
| Power consumption | 66 kW |
| Water consumption | 600 L/h |
| Compressed air | 1,500 L/min. at 6 bars |
| Dimensions (WxDxH) | 2,700 x 4,200 x 2,400 mm [107 x 166 x 95"] |
| Weight | Washing unit = 1,420 kg [3,131 lb] Electrical box = 60 kg [132 lb] Drying unit = 800 kg [1,764 lb] Winder = 150 kg [331 lb] |
